350 Ton Horizontal Wheel Press Machine Dismounting Wheels

  • 1
  • 2
  • 3

Model Number : HQ11

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, L/C

Supply Ability : 40 sets per year

Delivery Time : 120 days after advance payment & design finalization

Packaging Details : Standard export package

Brand Name : Heqiang Machinery

Price : Negotiable

Product name : Wheel press Machine

Application : Railway depots, Rolling stock enterprices

Usage : Wheelset dismount and back pressure test

Condition : New

Qty of Ram cylinder : One set

Cnc or not : CNC

Warranty : One year

After-sales service provided : Engineers available to service machinery overseas,Free spare parts,Online support

Contact Now

Railway Horizontal Wheel Press Machine , Wheel Dismount And Backpress Machine

Application Scope:
The wheel press machine is applicable for wheelset dismounting and back pressure test of different types of locomotives.

Main Technical parameters:

Maximum dismounting force 350 tons
Ram cylinder Qty 1 pc
Ram cylinder stroke Not less than 700mm
Applicable wheel diameter
1150~1250 mm
Applicable wheel seat diameter 245~260 mm
Applicable axle length 2100~2400 mm
Applicable wheelset weight 8 tons
Rapid approach speed 0~20 mm/s, adjustable
Pressing speed 0~3mm/s, adjustable
Working pressure of Hydraulic system Not more than 31.5 MPa
Resolution of pressure sensor Not more than 0.25%FS
Resolution of displacement sensor Not more than 0.01 mm
Ram positioning accuracy Not more than +/-0.1 mm
Noise level during working Not more than 75 dB
Machine weight Approx.12 tons
Overall dimensions (LxWxH) Approx.5100x2400x1400 mm

(*The detail parameters can be modified as per customer's actual requirements.)

Main Features:

  • The wheel press machine is mainly composed of machine chassis, fixed machine frame (with cylinder device), claw mechanism, detection system, hydraulic system, electrical control system and servo working platform etc.
  • Overall welded structure and carried out overall annealing and stress relieving treatment.
  • Special patented ram device to prevent axle upsetting.
  • Using a movable working platform, to fulfill the wheelset positioning support of domestic/foreign different types of locomotive, and it is fast, convenient and reliable.
  • Two dismounting claws can move synchronously. It can do dismounting by fastening rim inner side or wheel hub dismounting slot.
  • This wheel press machine can configure back pressure test function as per customer needs.
  • Siemens PLC and AdvanTech Industrial computer to control the operation.
  • Convenient human machine interface. It can plot pressing curve of pressure vs displacement etc.
  • Equipped with two operation modes: Automatic & Manual.
  • Only one operator is required to complete all the operations.


Technical Documents:
The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

  • Operating and maintenance instruction manual;
  • General arrangement drawing, Hydraulic schematic diagram, Electrical schematic diagram;
  • Foundation drawing;
  • Spare part list, Special tool list;
  • Product certificate/Factory Acceptance Certificate, packing list, etc.


Application example:

  • CRRC ZIYANG CO.,LTD.;
  • CRRC Zhuzhou Electrical Locomotive Co.,Ltd;
  • Wuhan Railway Wuhan High-power Locomotive overhaul base;
  • etc.

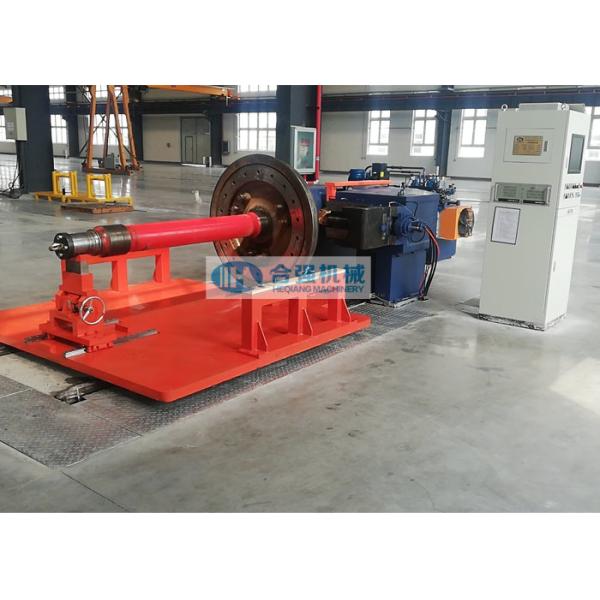

350 Ton Horizontal Wheel Press Machine Dismounting Wheels
350 Ton Horizontal Wheel Press Machine Dismounting Wheels
